400 kW
2x CCS | 5m

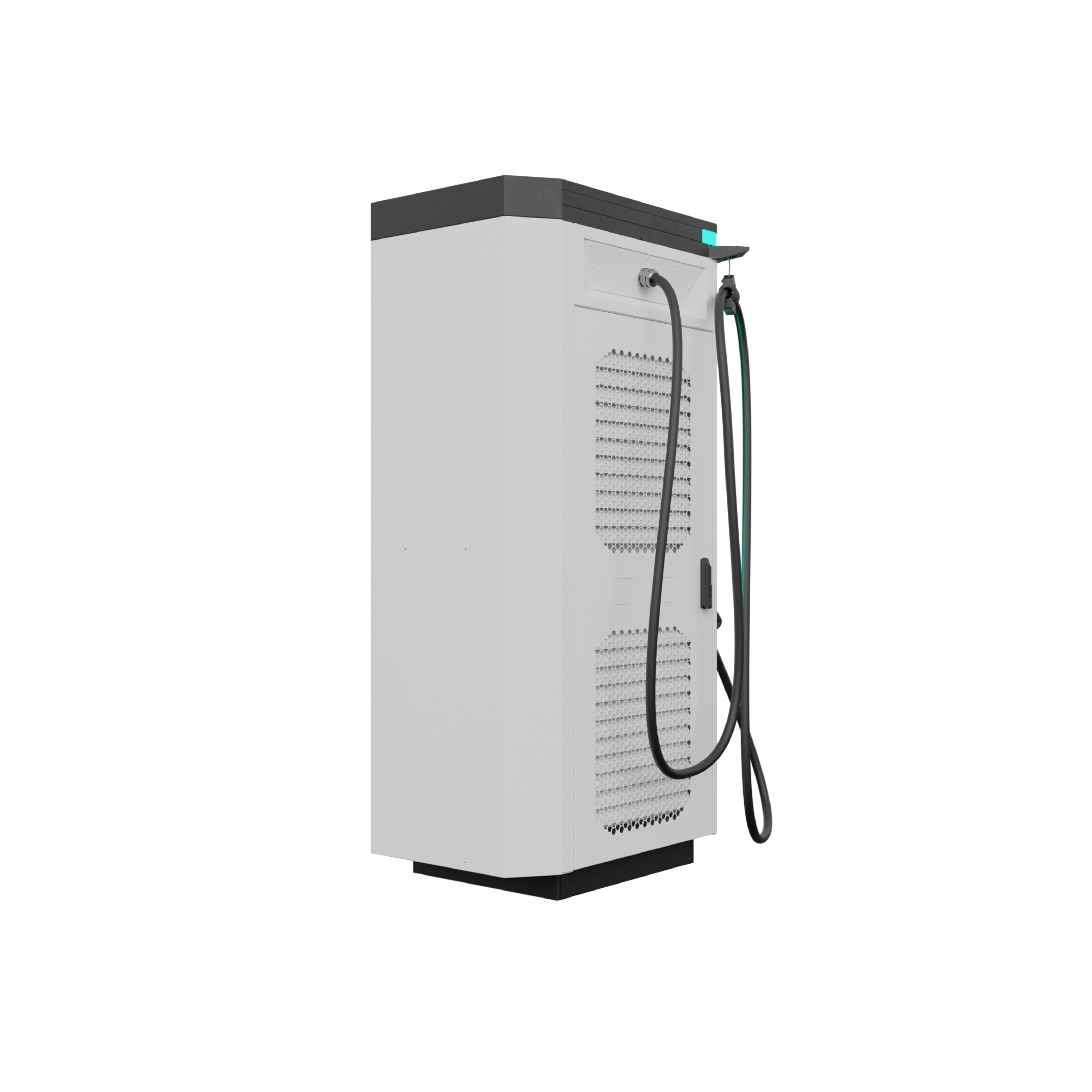

Ekoenergetyka Axon Easy 400 DC Charging Station
400 kW, 2x CCS cables 5 m 380 A, calibration law compliant, barrier-free
- All-in-one DC charging station in 3 power levels, here: 400 kW
- Integrated dynamic load management in 80 kW increments
- LED and panel lighting to indicate occupancy status and charging state
€101,761.08*
Available in 90 days, delivery time 2-5 days
Any questions about the product?
Our expert Mirco and his team is here to help!.png "Mirco")
You can contact us here:
* Monday to Thursday, 08:30 - 16:30 CEST, Friday 08:30 - 12:00 CEST
Ekoenergetyka Axon Easy 400
With the Axon Easy 400, Ekoenergetyka has introduced an ultra-fast DC charging station available in 3 power classes: 240 kW, 320 kW, and 400 kW. The modern design with status LEDs and panel lighting makes a great impression at depots and public charging parks alike. An intuitive touch display at barrier-free height allows for convenient control of charging sessions, featuring a day/night mode for optimal use at any time of day. This version comes with 400 kW charging power and two CCS2 cables, each 5 m in length.
Details:
- Number of charging points: 2
- Dimensions (W x H x D): 750 x 2120 x 1050 mm
- Weight: approx. 750 kg
- Connector type: 2x CCS2
- Cable: 380 A uncooled (with 500 A boost function), 5 m length with cable management system
- Frequency: 50 Hz
- Nominal voltage: 400 V
- Max output: 400 kW
- Output voltage range: 150 - 1000 V
- Protection rating: IP54 / IK10
- Fault current detection: DC isolation monitoring integrated
- Backend integration: OCPP 1.6-J, OCPP 2.0.1
- Authentication: RFID, QR code, app
- Display: 10" touch display
- Communication: mobile network, Ethernet
- Integrated dynamic load management in 80 kW increments
- Compatible with various card terminals and direct payment systems
Other Ekoenergetyka products
400 kW
2x CCS | 5m
With card terminal
400 kW
2x CCS | 5m
With card terminal
400 kW
2x CCS | 5m
With card terminal
40 kW
1x CCS | 5,5m
60 kW
1x CCS | 5,5m
80 kW
2x CCS | 6m
Product details: Ekoenergetyka Axon Easy 400
Key Advantages of the Axon Easy 400
1. Cable Management System with cable retraction
2. LED Lighting to indicate occupancy status (360° visibility from every angle)
3. Panel Lighting that displays the charging status, easily visible from a distance
4. High-efficiency Ventilation System with low noise emissions 60 dB(A)
5. Vandal-proof and Weather-resistant casing for temperatures from -35 to +55°C
6. 24" Advertising Screen for independent management of advertising content (optional)
7. 10" Touch Display for intuitive, barrier-free operation, with automatic day/night mode
8. Compatibility with various types of card terminals and payment providers for direct payment
9. Service Access on three sides of the charger for quick maintenance and troubleshooting
10. Remote Access, diagnostics, and software updates
One Axon Easy 400 – Two Displays
The Axon Easy 400 features an integrated 10" touch display at an accessible height with RFID authentication and an automatic day/night mode, allowing for easy and intuitive use at any time of day.
One standout feature is the 24" advertising screen located above the control display. This offers companies the opportunity to generate additional revenue by displaying advertisements. The advertising screen is optional and not included in all models.
All the Facts at a Glance
Need a compact overview of the technical details and functions of the Axon Easy 400? You can download, print, or save the product data sheet as a PDF through the following link.
